High-speed Automatic Chemical Pharmaceutical Rotary Tablet Press

High-speed Automatic Chemical Pharmaceutical Rotary Tablet Press

High-speed Automatic Chemical Pharmaceutical Rotary Tablet Press
High-speed Automatic Chemical Pharmaceutical Rotary Tablet PressHigh-speed Automatic Chemical Pharmaceutical Rotary Tablet PressHigh-speed Automatic Chemical Pharmaceutical Rotary Tablet PressHigh-speed Automatic Chemical Pharmaceutical Rotary Tablet PressHigh-speed Automatic Chemical Pharmaceutical Rotary Tablet Press
CategoriesTablet Press Machine
BrandLTPM CHINA
ModelZP-31D
Net Weight1950kg
CertificationCE,ISO
Overall Dimension1500*1300*1650mm
Max.Dia.22mm
Max.Pressure80KN
Max.Filling Depth15mm
FOB portNINGBO
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update TimeDec 21,2024
Detail Information
High-speed Automatic Chemical Pharmaceutical Rotary Tablet Press

Description:

Tablet Press Machine is a double press automatic rotation can be equipped with force-feeding system for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on


Product Features:

1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.

2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.
3. It is adopts the import Frequency Timing with Electromagnetism Clutch.
4. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.
5. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust

Technical Data:

Stations (unit)

31

Thickness of the die (mm)

22

Maximum compression (KN)

80

The diameter of the circle of the central pitch of upper &lower punches on the turret

320mm

Max. Diameter of tablet to be produced (mm)

25

Rotary speed of the turret (rpm)

14-35

Max. Filling depth (mm)

20

Capacity of the tablets

60,000-100,000pcs

Max. Thickness of tablet (mm)

12

Area to occupy (mm2 )

2230x2250

Machine Details



























                    Pressing Punches

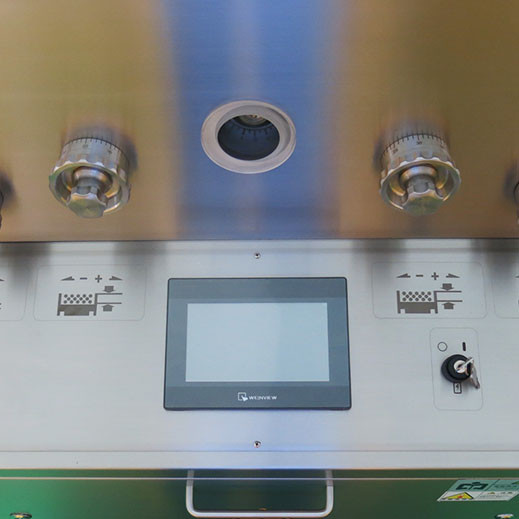

                  Control Panel




 37 11.jpg

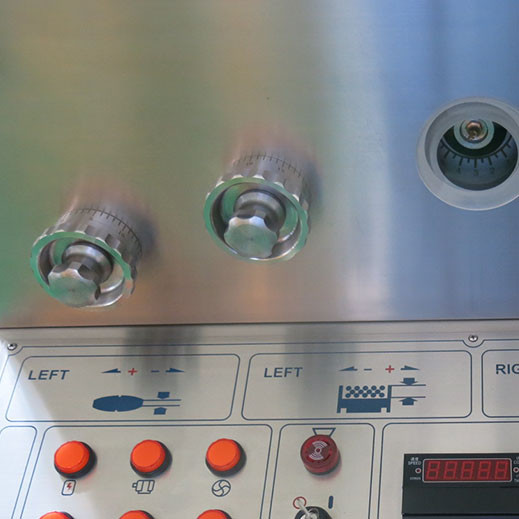

               Adjusting Knob

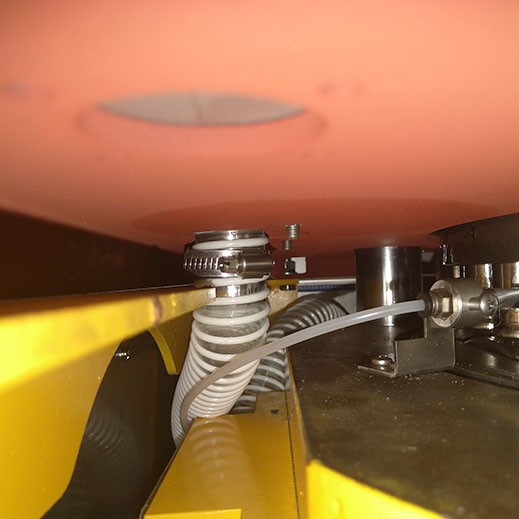

        Auto lubrication system

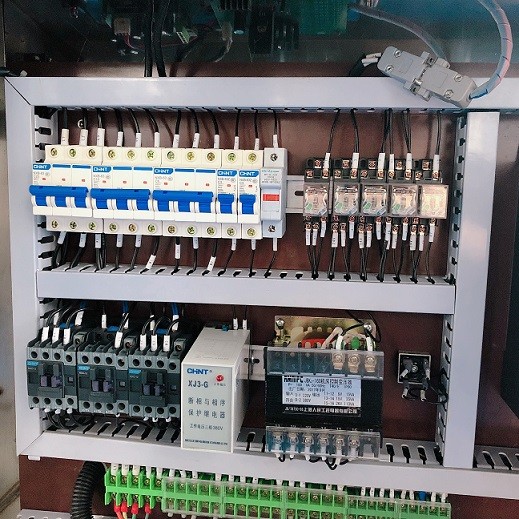

                 Electronic Box
