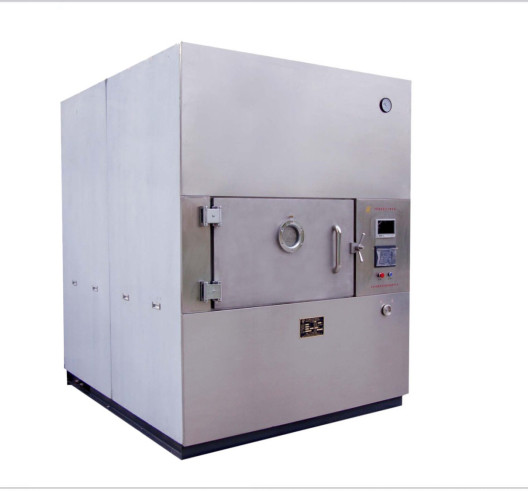

HWZ-30 Vacuum Micro Wave Drying Machine for Fiber, Cotton, food, fruit, etc

HWZ-30 Vacuum Micro Wave Drying Machine for Fiber, Cotton, food, fruit, etc

HWZ-30 Vacuum Micro Wave Drying Machine for Fiber, Cotton, food, fruit, etc
HWZ-30 Vacuum Micro Wave Drying Machine for Fiber, Cotton, food, fruit, etcHWZ-30 Vacuum Micro Wave Drying Machine for Fiber, Cotton, food, fruit, etcHWZ-30 Vacuum Micro Wave Drying Machine for Fiber, Cotton, food, fruit, etc
CategoriesVacuum Drying Machine
BrandLTPM CHINA
ModelHWZ-30
Power Supply380V 50hz Three phase (also can be required by cus
Working Frequency2450±50MHZ
Electronic Consumption40kw
Micro Wave Power30KW
Drive Motor power0.75kw
Evaporation Speed24-30Kg/Hour
Vacuum Rate (MPa)-0.075MPa
Micro Wave LeakageUp to National Standard ≤5MW/CM2
Machine Size1880×2400×2420 mm
Vacuum pump power7.5kw
Unit PriceUS $ 33800 / piece
FOB portNingbo
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update TimeDec 22,2024
Detail Information

HWZ-30 Vacuum Micro Wave Drying Machine for Fiber, Cotton, food, fruit, etc


HWZ-30 Includes:

1.10 pcs of Trays

2.Vacuum Pump

***We can manufacture the Non-standard equipment according to the requirement of customers!***

Operation Principle:

Making use of the thermal effect and the non-thermal effect of microwaves penetration through the foodstuff, it can respectively process heating, drying, dehydration, defrosting and sterilizing. Compared with traditional food processing, it has the following advantages:

1.Higher drying speed.

2.The nutition, chlorophyll and vitamin can be well preserved due to quick heating speed.

3.The efficiency of drying and dehydration is several times or tens of times as high as  the traditional one.

4.Meanwhile, microwave can sterilize and resist rot.

Range of Usage:

Different kinds solid contained liquid, shallot, carrot, cabbage, green and red pepper flakes, caraway, celery, tomato, onion, garlic, ginger, champignon, taro, etc.
We can manufacture the non-standard equipment according to the requirement of customers!

Main Technical Data:

Item

Specification

Model

LTVM-30

Power Supply

380V 50hz Three phase (also can be required by customer)

Working Frequency

2450±50MHZ

Electronic Consumption

40kw

Micro Wave Power

30KW

Drive Motor power

0.75kw

Evaporation Speed

24-30Kg/Hour

Vacuum Rate

-0.075MPa

Micro Wave Leakage

Up to National Standard ≤5MW/CM2

Machine Size

1880×2400×2420 mm

Vacuum pump power

7.5KW

Temperature Range

30-80℃

Packaging Details

 Wrapped by stretch Film with desiccant bags

 Packed in to Export Standard Anti moisture Wooden case

 Glued Marks label on wooden case


Main Part List of Machine:

Number

Name

QTY

Supplier

Remark

1

Main Machine

1set

LTPM CHINA



2

Tray Holder

10pcs

LTPM CHINA

Stainless Steel 304

3

Tray

10pcs

LTPM CHINA

Food grade PP material

4

Vacuum Pump

1pcs

SHANDONG



5

Worm Gear Reducer and Cycloid Reducer Combination

1pcs

SHANXI STEADILY

0.75KW

6

Microwave power

30pcs

SHENZHEN MEGMEET

1.0KW

7

Transformer

30pcs

LTPM CHINA

1.05KW

8

Magnetron device

30pcs

Samsung Korea

2M167B-M11

9

Encoder

1pcs

AUTONICS

E40H8-3600-3-T-24

10

Touch Screen

1pcs

TAIWAN DELTA



11

PLC

1set

Panasonic Japan



12

Monitoring system

1set

Shenzhen CONSTAR



13

Temperature controller

2pcs

CHNT

PT100

14

Electronics

1

CHNT



15

Far-infrared thermometer

1pcs

GERMANY OPTRIS



16

air filter

2pcs

SHANGHAI



17

Double-effect cooling oil tank

1pcs

LTPM CHINA using American Titan Technology

Finished Product:
